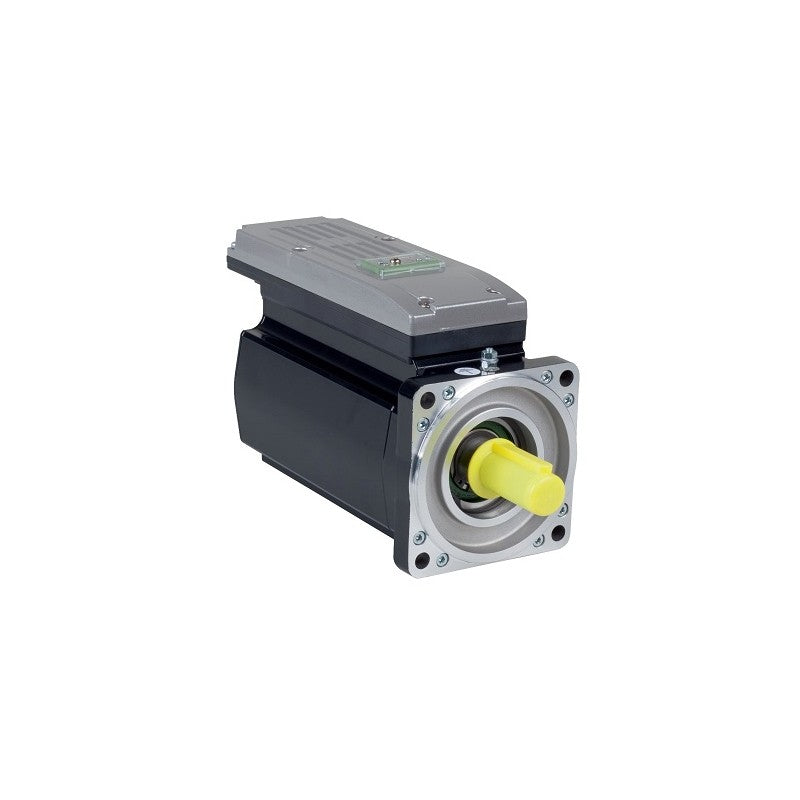

ILM1003P11F0000 Schneider Electric
ILM1003P11F0000 Schneider Electric
Verfügbarkeit für Abholungen konnte nicht geladen werden
Industrial AC servo-drive hardware supplied by Outdwella.
This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 8-pole integrated servo motor features 3 stacks with a maximum mechanical speed of 3000RPM, a continuous rated stall torque 5.8Nm and parallel keyed. It is an equipped with a single-turn SinCos Hiperface® absolute encoder (128 periods per revolution) with holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 3.6A and a maximum continuous power of 1.1kW. The shaft dimensions are 19mm (diameter) x 40mm (length). It is an IP54 rated product. The length of this product is 315mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 8.9kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 100mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | PacDrive 3 |
| Product or Component Type | Servo motor integrated drive |
| Device short name | ILM |
Complementary
| Characteristic | Value(s) |
|---|---|
| [Us] rated supply voltage | 250...700 V |
| Continuous stall current | 3.6 A |
| Continuous stall torque | 51.3 lbf.in (5.8 N.m) |
| Peak stall torque | 250.5 lbf.in (28.3 N.m) |
| Nominal Output Power | 1100 W |
| nominal torque | 31.0 lbf.in (3.5 N.m) |
| Nominal speed | 3000 rpm |
| Maximum current Irms | 21.2 A |
| Line Rated Current | 2.4 A |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.7 in (19 mm) |
| Shaft length | 1.6 in (40 mm) |
| key width | 1.2 in (30 mm) |
| Feedback type | Absolute single turn SinCos Hiperface |
| Speed feedback resolution | 128 periods |
| Holding brake | With |
| Holding torque | 79.7 lbf.in (9 N.m) holding brake |
| Mounting Support | International standard flange |
| Motor flange size | 3.9 in (100 mm) |
| Torque constant | 1.61 N.m/A 248 °F (120 °C) |
| Back emf constant | 103 V/krpm 68 °F (20 °C) |
| Number of motor poles | 8 |
| Rotor inertia | 3.92 kg.cm² |
| Stator resistance | 2.6 Ohm 68 °F (20 °C) Ph/Ph 1.81 Ohm 248 °F (120 °C) Ph/N |
| Stator inductance | 15.6 mH 68 °F (20 °C) Ph/Ph 7.8 mH 248 °F (120 °C) Ph/N |
| Maximum radial force Fr | 1050 N 1000 rpm 830 N 2000 rpm 730 N 3000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| type of cooling | Natural convection |
| Length | 12.4 in (315 mm) |
| Number of motor stacks | 3 |
| Centring collar diameter | 3.7 in (95 mm) |
| centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9 mm) |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Product Weight | 19.6 lb(US) (8.9 kg) |
Ordering notes
- New items are unused surplus stock and packaging condition may vary.
- Used in Great Condition items have been previously installed or operated and are represented as serviceable used hardware.
- Confirm the complete manufacturer part number, input voltage, output rating, motor compatibility, feedback interface, revision, and control-system requirements.
