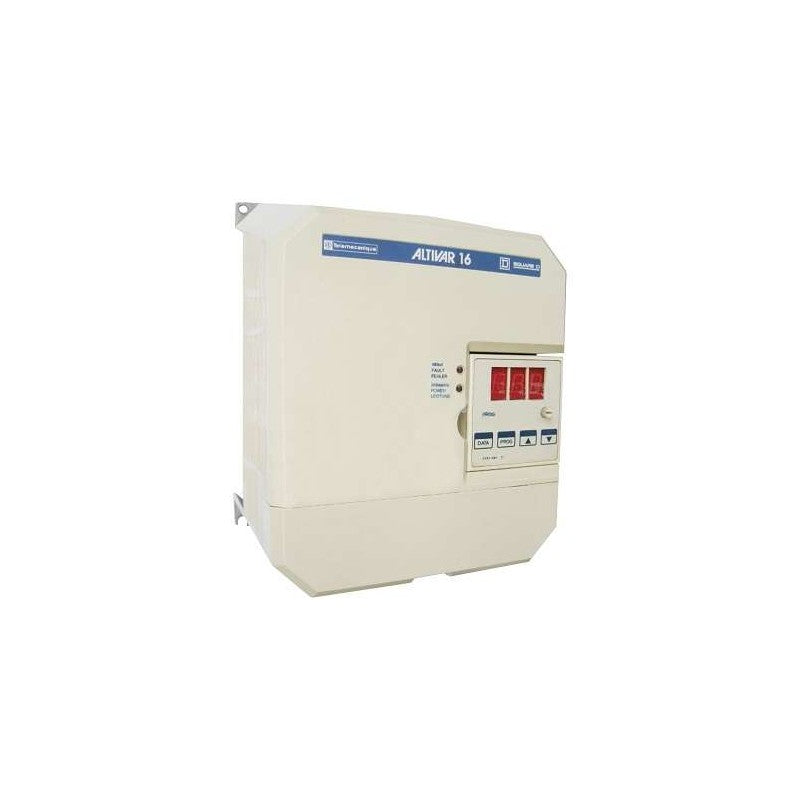

• ATV16U29N4 Schneider Electric AC servo drive
1 1

Schneider

ATV16U29N4 Schneider Electric

ATV16U29N4 Schneider Electric

$442.00 USD
$520.00 USD $442.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Condition

Industrial AC servo-drive hardware supplied by Outdwella.

Main

Characteristic Value(s)
Range of Product Altivar 16
Product or Component Type Variable speed drive

Complementary

Characteristic Value(s)
Product destination Asynchronous motors
[Us] rated supply voltage 380...500 V - 15...10 %
Supply frequency 50/60 Hz +/- 5 %
Network frequency limits 47.5…63 Hz
Phase 1 phase
Motor power kW 1.5 kW
Maximum Horse Power Rating 2 hp
Line current 16 A 380 V
13.5 A 500 V
Apparent power 5 kVA 400 V
Prospective line Isc 5 kA
Continuous output current 4.1 A 380 V
3.8 A 500 V
Speed drive output frequency 0.5…400 Hz
Nominal switching frequency 4 kHz
Switching frequency 12...16 kHz with derating factor
2...12 kHz adjustable
Local signalling 1 LED (red) for DC bus energized
Output voltage <= power supply voltage
Communication Port Protocol Modbus
Connector Type 1 RJ45
Physical interface 2-wire RS 485
Transmission frame RTU
Transmission Rate 9600 bps or 19200 bps
Data format 8 bits, 1 stop, odd even or no configurable parity
Height 7.9 in (200 mm)
Width 7.09 in (180 mm)
Depth 5.7 in (144 mm)
Option card Communication card APOGEE FLN
Communication card BACnet
Communication card LonWorks
Communication card METASYS N2

Ordering notes

  • New items are unused surplus stock and packaging condition may vary.
  • Used in Great Condition items have been previously installed or operated and are represented as serviceable used hardware.
  • Confirm the complete manufacturer part number, input voltage, output rating, motor compatibility, feedback interface, revision, and control-system requirements.
