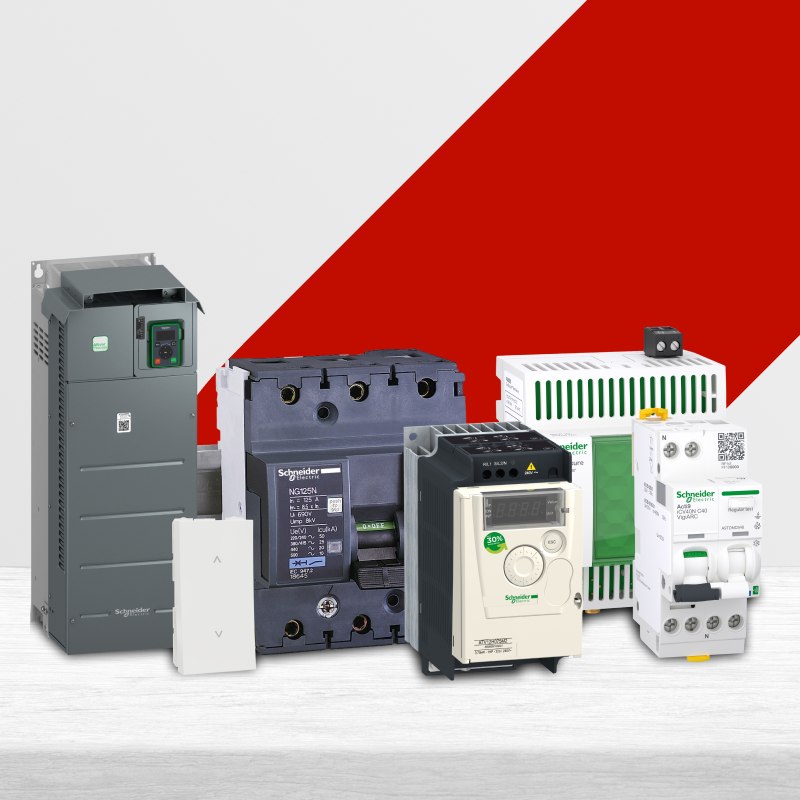

• ATV11HU29M3U Schneider AC servo drive
1 1

Schneider

ATV11HU29M3U Schneider

ATV11HU29M3U Schneider

$446.24 USD
$524.99 USD $446.24 USD
Oferta Agotado
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
Condition

Industrial AC servo-drive hardware supplied by Outdwella.

Main

Characteristic Value(s)
Range of Product Altivar
Product or Component Type Variable speed drive
Product Specific Application Simple machine
Component name ATV11
Application market USA market
Assembly style With heat sink
EMC filter Without EMC filter
Built-in fan With
Phase 3 phase
[Us] rated supply voltage 200...230 V - 15...10 %
Supply frequency 50...60 Hz - 5...5 %
Motor power kW 1.5 kW
Maximum Horse Power Rating 2 hp
Line current 11 A 208 V, Isc = 1 kA
Nominal output current 7.5 A 230 V motor 4 kHz
Maximum transient current 11.2 A 60 s
Power dissipation in W 75 W at nominal load
Switching frequency 2...16 kHz adjustable
4...16 kHz with derating factor
Braking torque 150 % of nominal motor torque with braking resistor at high inertia
20 % of nominal motor torque without braking resistor at no load
80 % of nominal motor torque with braking resistor at no load
Asynchronous motor control profile Sensorless flux vector control with PWM type motor control signal
Electrical connection Terminal 1.5 mm², AWG 14 AI1, RA-RC, LI1...LI4, DO)
Terminal 1.5 mm², AWG 14 L1, L2, L3, U, V, W, PA, PC)
Supply Internal supply for logic inputs 15 V +/- 15 %) 100 mA overload and short-circuit protection
Internal supply for reference potentiometer (2.2 to 10 kOhm) 5...5.25 VDC 10 mA overload and short-circuit protection
Analogue input type Configurable current AI1 4...20 mA 250 Ohm without adding resistor
Configurable voltage AI1 0...5 V 40000 Ohm only with internal supply
Configurable current AI1 0...20 mA 250 Ohm
Configurable voltage AI1 0...10 V 40000 Ohm
Sampling duration AI1 20 ms analog
LI1...LI4 20 ms discrete
Response time 20 ms DO
Linearity error DO +/- 1 % output
AI +/- 5 % input
Discrete input type Assignable Ll1 forward 5000 Ohm 15 V 24 V
Assignable Ll2 reverse 5000 Ohm 15 V 24 V
Assignable Ll3/Ll4 4 preset speeds 5000 Ohm 15 V 24 V
Discrete input logic Positive logic (source) LI1...LI4), < 5 V, > 11 V
Discrete output type Assignable as external voltage DO 30 V max, 30 mA
Assignable as open collector logic output DO 100 Ohm, 50 mA max
Factory set as PWM open collector output DO at 2 kHz 10 mA max
Protected relay logic RA-RC 1 NO
Assignable as internal voltage DO
Minimum switching current RA-RC 10 mA 24 V DC
Maximum switching current 2 A 250 V AC inductive cos phi = 0.4 7 ms RA-RC
2 A 30 V DC inductive cos phi = 0.4 7 ms RA-RC
5 A 250 V AC resistive cos phi = 1 0 ms RA-RC
5 A 30 V DC resistive cos phi = 1 0 ms RA-RC
Protection type Line supply overvoltage drive
Line supply undervoltage drive
Overcurrent between output phases and earth drive
Overheating protection drive
Short-circuit between motor phases drive
Thermal protection motor
Frequency resolution Display unit 0.1 Hz
Analog input converter A/D, 10 bits
Electromagnetic compatibility 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to EN/IEC 61000-4-5
Electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4
Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3
Maximum motor cable length 65.6 ft (20 m) with additional EMC filter from 2 to 16 kHz EN 55011 class A group 1
16.4 ft (5 m) with additional EMC filter from 2 to 16 kHz EN 55011 class B
Vibration resistance 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 15 gn 11 ms EN/IEC 60068-2-27
Relative humidity 5…93 % without condensation IEC 60068-2-3
5…93 % without dripping water IEC 60068-2-3
Ambient air temperature for operation 14…104 °F (-10…40 °C) without derating
104…122 °F (40…50 °C) by removing the protective cover from the top of the drive
122…140 °F (50…60 °C) by removing the protective cover from the top of the drive with current derating of 2.2 % per °C
Operating altitude <= 3280.84 ft (1000 m) without derating
> 3280.84 ft (1000 m) with current derating 1 % per 100 m

Complementary

Characteristic Value(s)
Product destination Asynchronous motors
Supply voltage limits 170…253 V
Network frequency limits 47.5…63 Hz
Speed drive output frequency 0…200 Hz
Nominal switching frequency 4 kHz
Speed range 1…20
Transient overtorque 150...170 % of nominal motor torque
Regulation loop Adjustable frequency
Possible correction for machines with high resistive torque/inertia/fast cycles
Factory-set with the speed loop stability and gain
Motor slip compensation Adjustable
Preset in factory
Prospective line Isc 1 kA
Output voltage <= 2 x power supply voltage
Insulation Electrical between power and control
Analogue input number 1
Discrete input number 4
Discrete output number 2
Acceleration and deceleration ramps Linear from 0 to 99.9 s
Braking to standstill By DC injection
Insulation resistance >= 500 mOhm
Marking CE
Operating position Vertical +/- 10 degree
CAD overall width 4.6 in (117 mm)
CAD overall height 5.6 in (142 mm)
CAD overall depth 6.1 in (156 mm)
Outer dimension 142 x 72 x 101 mm
Product Weight 4.0 lb(US) (1.8 kg)

Ordering notes

  • New items are unused surplus stock and packaging condition may vary.
  • Used in Great Condition items have been previously installed or operated and are represented as serviceable used hardware.
  • Confirm the complete manufacturer part number, input voltage, output rating, motor compatibility, feedback interface, revision, and control-system requirements.

Outdwella is an independent reseller. Manufacturer names and part numbers identify compatibility and remain the property of their respective owners.
